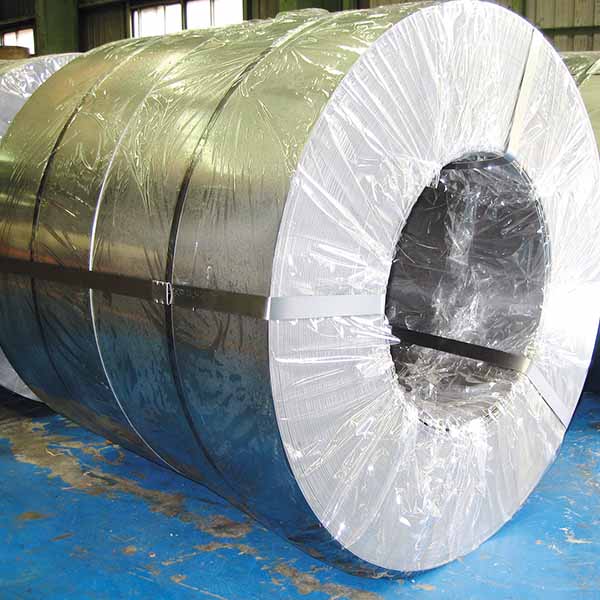

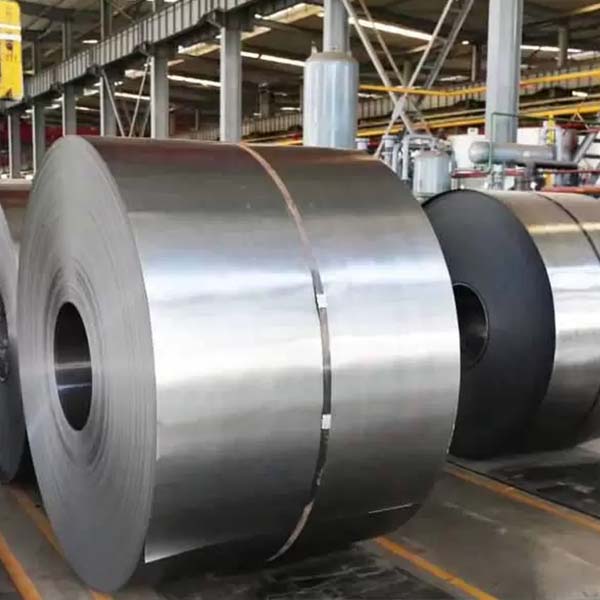

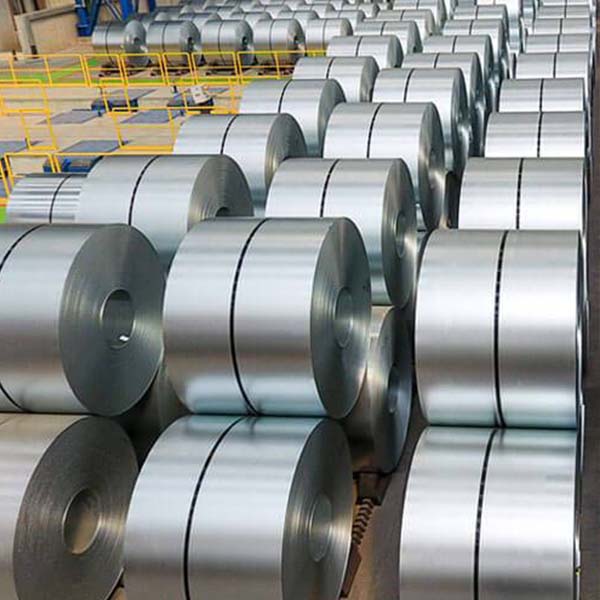

Stainless Steel Coil

Product Name: Stainless Steel Strip Coil, 304 Stainless Steel Coil, 316L Stainless Steel Coil

Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Specification:

Size:
Cold Rolled: Thickness: 0.3 ~ 6.0mm; Width:1000 ~ 2000mm
Hot Rolled: Thickness: 3.0 ~ 16.0mm; Width:1000 ~ 2500mm

Length: as customers' request

Techniques:cold drawn/cold rolled/hot rolled

Surface:2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.3, No.4, Hair Line with PVC,Matt finish

Grade: 200series&300series&400series

Standard:ASTM A240, ASTM A213, ASTM A240, ASTM A312, ASTM A789, JIS G3459JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441

Send Email Inquiry

Introduction Specification Production Process Packaging Inquiry

Introduction

Product Name: Stainless Steel Strip Coil, 304 Stainless Steel Coil, 316L Stainless Steel Coil

Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Size
Cold Rolled: Thickness: 0.3 ~ 6.0mm; Width:1000 ~ 2000mm
Hot Rolled: Thickness: 3.0 ~ 16.0mm; Width:1000 ~ 2500mm

Techniques:Cold Rolled, Hot Rolled

Surface:2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.3, No.4, Hair Line with PVC

Cold Rolled Stainless Steel Coil:300Series Stainless CR Coil: 304/2B, 304/BA, 304L/2B, 304L/BA, 304J1/2B, 316L/2B, 316L/BA, 309S/2B, 310S/2B, 321/2B, 301/2B;
200Series Stainless CR Coil: 201/2B, 202/2B;
400Series Stainless CR Coil: 409L/2B, 409L/2D, 410/2B, 410S/2B, 420/2B, 430/2B, 430/BA, 436L/2B, 436L/2B, 436L/2D, 439/2B, 441/2D, 443/2B, 444/2B.

Hot Rolled Stainless Steel Coil:300Series Stainless HR Coil: 304/No.1, 304L/No.1, 316/No.1, 316L/No.1, 309S/No.1, 310S/No.1, 317L/No.1, 321/No.1, 347/No.1;
200Series Stainless HR Coil: 201/No.1, 202/No.1, L1/No.1, L4/No.1;
400Series Stainless HR Coil: 410/No.1, 410S/No.1, 420/No.1, 430/No.1;
Duplex&Super Stainless Coil: 2205/No.1, 2507/No.1, S31803/No.1, 904L/No.1, 254SMo/No.1, N08367/No.1, N08926/No.1

Standard
ASTM A240, ASTM A213, ASTM A240, ASTM A312, ASTM A789, JIS G3459JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441
Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins
Steel Grades:201, 202, 304, 314L, 316, 316L, 310S, 317L, 321, 409L, 430

Process Method:Cold Rolled, Hot Rolled

Surface:Annealed, Pickling, Polished

Specification

Type	Grade	Grade	Chemical Component %
Type	Grade	Grade	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
Austenitic	201	SUS201	≤0.15	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	202	SUS202	≤0.15	17.00-19.00	4.00-6.00	7.50-10.00	≤0.060	≤0.030		≤1.00	-	≤0.25	－
	301	1.4310	≤0.15	16.00-18.00	6.00-8.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	≤0.10	-
	304	1.4301	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304L	1.4307	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304H	1.4948	0.04-0.10	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309	1.4828	≤0.20	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309S	*	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	310	1.4842	≤0.25	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	310S	*	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	314	1.4841	≤0.25	23.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	1.50-3.00	-	-	-
	316	1.4401	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316L	1.4404	≤0.030	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316Ti	1.4571	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	0.1	Ti5(C+N)~0.70
	317	*	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	317L	1.4438	≤0.03	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	321	1.4541	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5(C+N)~0.70
	321H	*	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5(C+N)~0.70
	347	1.4550	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C%-1.10
	347H	1.494	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C%-1.10
Duplex	2205	S32205	≤0.03	22.0-23.0	4.5-6.5	≤2.00	≤0.030	≤0.020	3.0-3.5	≤1.00	-	0.14-0.20
Duplex	2507	S32750	≤0.03	24.0-26.0	6.0-8.0	≤1.20	≤0.035	≤0.020	3.0-5.0	≤0.80	0.5	0.24-0.32
Ferrite	409	S40900	≤0.03	10.50-11.70	0.5	≤1.00	≤0.040	≤0.020	-	≤1.00	-	≤0.030	Ti6(C+N)~0.50 Nb:0.17
	430	1Cr17	≤0.12	16.00-18.00	-	≤1.0	≤0.040	≤0.030	-	≤1.0	-	-	-
	444	S44400	≤0.025	17.50-19.50	1	≤1.00	≤0.040	≤0.030	1.75-2.5	≤1.00	-	0.035	Ti+Nb:0.2+4(C+N)~0.80
Martensite	410	1Cr13	0.08-0.15	11.50-13.50	0.75	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	410S	*	≤0.080	11.50-13.50	0.6	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	420	2Cr13	≥0.15	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	420J2	3Cr13	0.26-0.35	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
PH	630	17-4PH	≤0.07	15.00-17.50	3.00-5.00	≤1.00	≤0.035	≤0.030	-	≤1.00	3.00-5.00	-	Nb 0.15-0.45
	631	17-7PH	≤0.09	16.00-18.00	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤1.00	≤0.50	-	Al 0.75-1.50
	632	15-5PH	≤0.09	14.00-16.00	3.50-5.50	≤1.00	≤0.040	≤0.030	2.00-3.00	≤1.00	2.5-4.5	-	Al 0.75-1.50

Stainless steel coil plate – ASTM A240M

Grade	Thickness (mm)	Coil width (mm)	Finish
304/304L	5.0	1500	2B
316/316L	6.0	2000	No. 1
304/304L	8.0	1500	No. 1
316/316L	10.0	2000
	12.0
3CR12	5.0	1250	No. 1

Stainless Steel Plate
Grade	304/304L, 316/316L & 4003/3CR12.
Thickness (mm)	5.0 to 50.0.
Width (mm)	1250 (grade 4003), 1500 & 2000.
Length (mm)	3000, 6000 & customer specific cut-to-length.
Finish	2B (to 8mm) & No.1 (HRAP).
Plasma profiles	To customer drawings.
