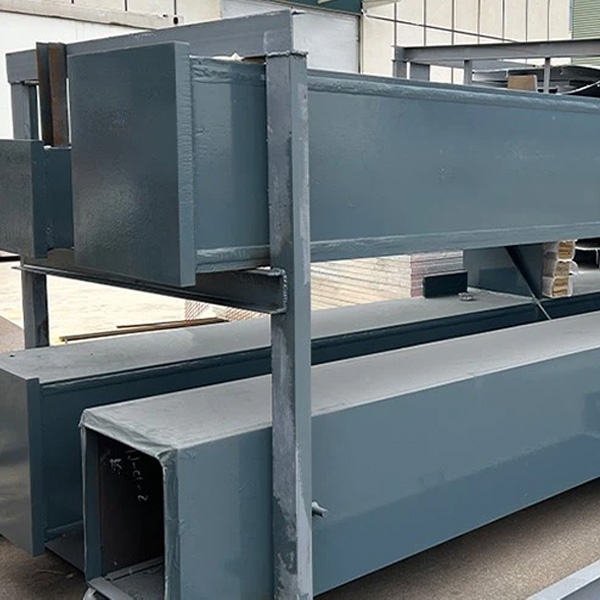

Box Steel Column Beams Fabrication

Building Construction Material Structural Steel / Box Steel Column Beams Fabrication

The hollow nature of box beams helps distribute stress evenly, making them highly efficient in terms of both material use and performance. These beams are commonly fabricated from materials like steel, aluminum, or concrete, depending on the needs of the specific project.

Material: Q235B, Q355B,A36,S275
Standard: GB,EN1900,AISC,JIS,CWB
Surface Treatment: 1.Painting 2.Galvanized
Application: Steel Structure Fabrication, Prefabricated Building
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Package: GP Containers (40 Feet),Break Bulk
Highlight: Prefabricated Steel Structure Fabrication, Building Steel Structure Fabrication, Box Steel Components

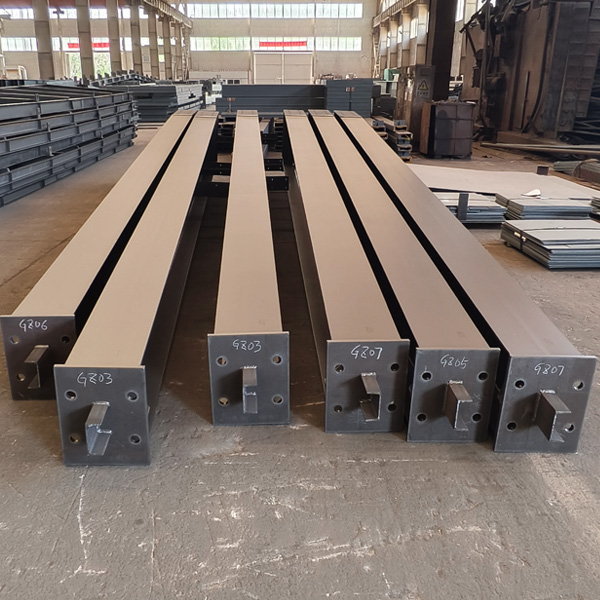

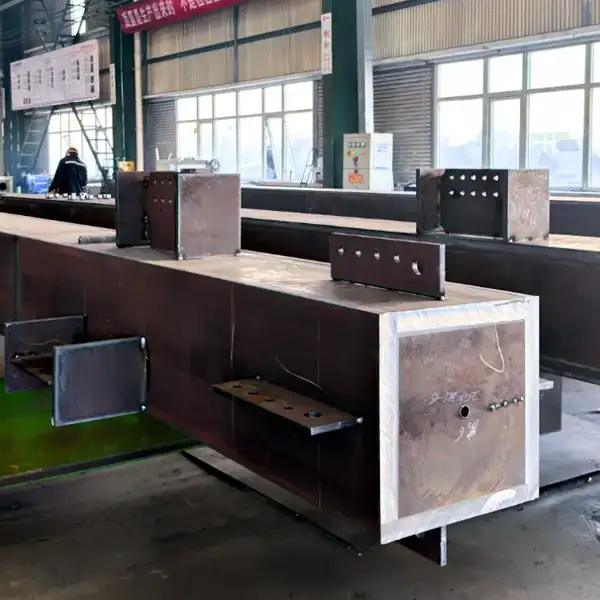

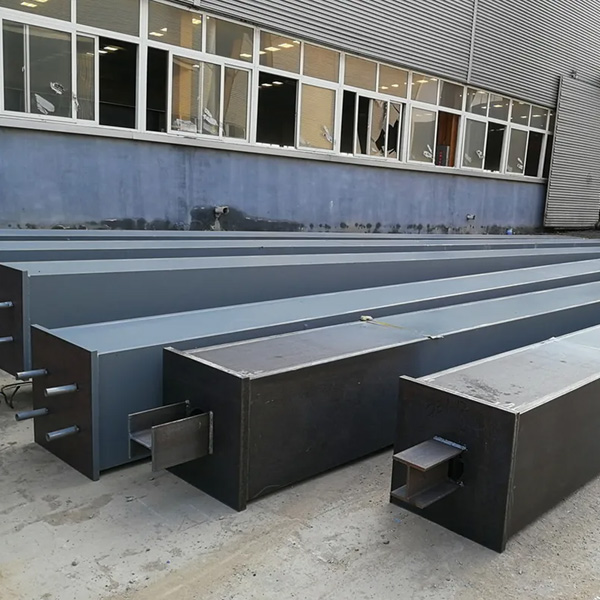

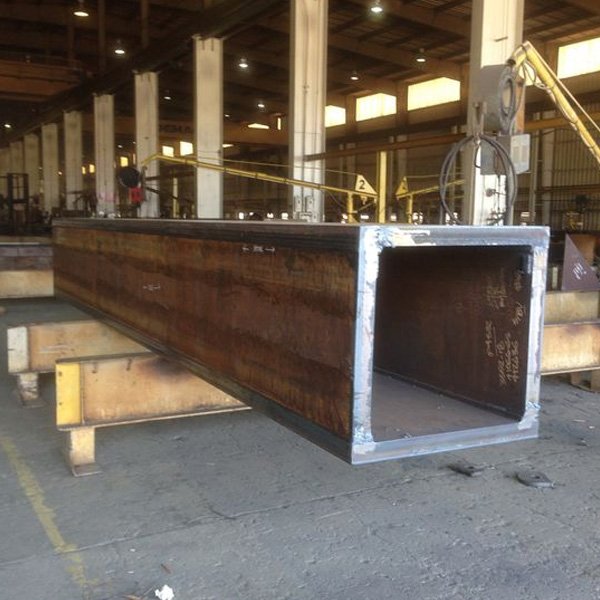

What is box-shaped steel column & beam:

Box-shaped column is welded by four steel plates, and the manufacturing process is basically the same as that of the welded H-shaped steel. Welded steel box beam and box column is widly used in the steel structure proejct. Compared with H-shaped steel column has only one strong axis, box column is a strong axis in the X and Y directions, and a stiffening plate at the node, a strong node domain is formed, and the force condition is superior to that of the rolled H-beam. We could fabricate it in many ways or as your request. Here we will show you one of the fabriation method.

How to fabricate steel box beam & box column:


1. Firstly, the above cover plate is used as the assembly reference, and the partition plate and the side web assembly line are respectively released on the assembly surface according to the construction drawing requirements, and the sample punching mark is used.

2. First assemble the upper cover and the partition, and assemble them on the tire mold. After assembly, the welding must be completed before proceeding to the next process.

3. Before the web is assembled, the flatness of the web must be checked. When assembling, the assembly should be assembled in one direction. First, the middle stiffener is positioned, and then the web is positioned.

4. The whole assembly of the box structure is completed after the U-shaped structure is completed. First, the edge of the U-shaped structure web is corrected to make the unevenness <L/1000, and then the web assembly positioning line is released on the lower cover, and the U-shaped is inverted. Structural assembly, using one direction assembly, positioning spot welding using symmetric welding method.

5. The last side of the separator is welded by electroslag pressure welding, and electroslag pressure welding is used for special equipment.

Remarks: It can be processed according to the drawings and can meet the processes of shot blasting, punching, stiffening (joining board), painting and so on;

Structural box beams are beams with a hollow rectangular or square cross-section, giving them a unique box-like shape. This design allows them to handle significant weight while remaining lightweight. They are often used for long-span applications, where strong and durable beams are needed without additional weight or bulk.

Applications of Box Beams
Bridge Construction
One of the most common applications of structural box beams is in bridge construction. Due to their high load-bearing capacity and ability to span long distances with fewer supports, box beams are used to support bridge decks, ensuring stability while minimizing the number of support columns. Their lightweight design allows for easier transportation and placement, reducing the time and costs associated with building bridges.

High-Rise Buildings
In skyscrapers and multi-story buildings, box beams are often integrated into the overall structural design. These beams can support both vertical and horizontal loads, which reduces the need for numerous columns and increases the usable floor area. Their ability to support high loads without increasing the weight of the structure makes them ideal for tall buildings.

Commercial and Industrial Buildings
Structural box beams are widely used in large commercial and industrial buildings, such as warehouses and factories, where open floor space is required. They are often used to support large roofs, offering significant strength and flexibility without the need for multiple support columns in the building’s interior.
