Elbow

Pipe type:45 Degree,90 Degree,180 Degree Elbow,Long Radius,Short Radius Elbow,Spool Piece And Flanged Fittings

Size:NPS: 1/2''~24''(Seamless), 24''~72''(Welded);DN: 15~1200,

WT:2~80mm, SCH 5~XXS

Bending Radius:R=1D~10D, R=15D, R=20D
Material & Standard:

Carbon Steel --- ASME B16.9, ASTM A234 WPB

Stainless Steel --- ASTM A403 304/304L/310/310S/316/316L/317L/321 ;

Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91

Ends:Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

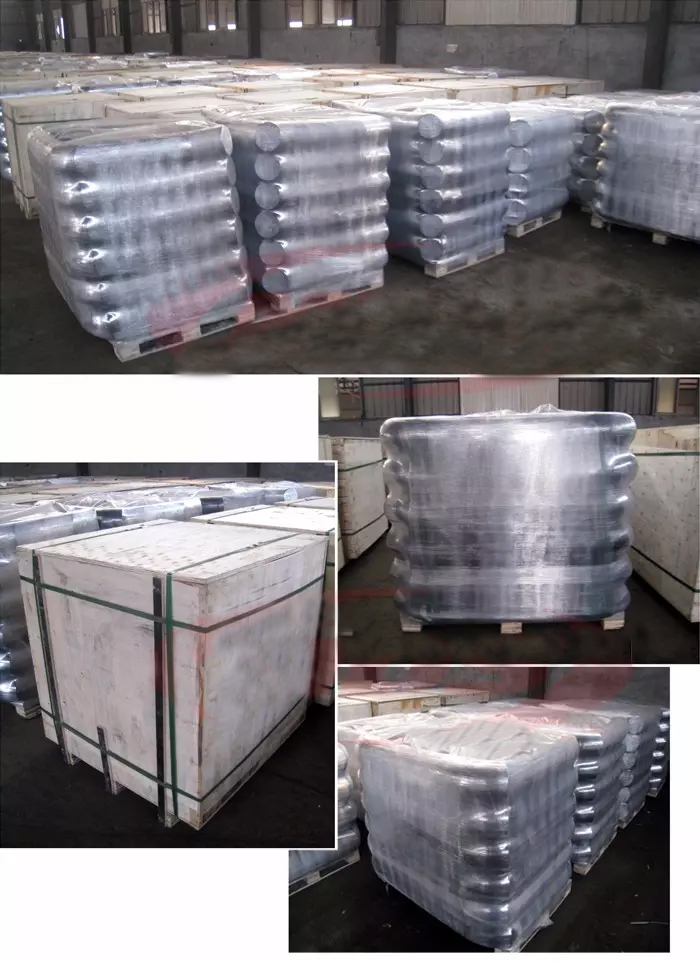

Packing:Packed in Wood Cabins/Wood Tray

Usage:For conveying gas, water and oil either in the oil or natural gas industries

Butt Weld Elbow

Butt weld refers to connect pipes and fittings ends by butt welding method, it has ends in beveled to make it easy to weld, beveled ends should be conformed to requirement of ASME B16.25, plain end is offered upon request, BW elbow dimensions can be from 1/2” to 72”, BW weld elbow can be made of both seamless and welded pipe by the process of hot forming that includes bending and forming to shape.

Butt-weld fittings allow for a smooth, flush connection that provides maximum flow, is lower cost elbow, thin wall sizes can be allowed.

Socket Weld Elbow

Socket weld elbow has socket area at end of elbow, it can be inserted a pipe to connect together, the diameter of socket area is matching with the outer diameter of pipe.

Socket connect elbows are easier to weld than butt-weld elbows because the fitting doesn’t need to align perfectly to the pipe. Slip the pipe into the socket and weld, no beveled ends needed.

SW elbows also have 90 degree and 45 degree elbows for selecting, generally, SW elbow is used for small pipe diameter, and have three pressure ratings: Class 3000, 6000 and 9000.

Threaded Elbow

Threaded elbow is similar to the SW elbow in shape, the difference is that threaded elbow has thread inside of elbow end, this type elbow is easier to install and remove, good for pipeline repair and maintenance.

Spool Piece And Flanged Fittings

Steel Pipe Spool type:Seamless & Welded
Value Added Services Provided By Manufacturer:Design, Engineering & Fabrication
Size:114mm to 2500mm diameter (Seamless & Welded, Fabricated)
Operating Pressures:As required/as per drawings
Maximum Velocities : As required/as per drawings
Operating Temperatures：As required/as per drawings
Hydro Tested Pressure:As required/as per drawings
Class :150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard:ND-6,10, 16, 25, 40
Thickness :As required/as per drawings
Specialize:As required/as per drawings
Form :Round, Square, Rectangle Hydraulic, Horn Pipe etc.
Material:Carbon Steel, Stainless Steel, Hastelloy, Alloy Steel, Nickel Alloy, Copper, Duplex Steel & Super duplex
Sizes：By Manufacturer:as per customer specification
Usage/Applications :Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects.

A piping system is a vast network of components each, having its own unique function. Pipe Spools are devices in this vast system, which are pre-fabricated across smaller segments. These components include flanges, fittings, and pipes, which are mounted during the fabrication process and delivered to the consumer. A Pipe Cleaner Spool is prone to corrosion due to their exposure to different environmental elements. This is why we offer these components with enhanced tolerances after processing them further. The Pipe Chain Spool is very reliable and durable

A Pipe Spool Flange can be used in connecting long pipes with the tips of flanges. This enables them to be easily bolted to another pipe or a matching flange. They are widely seen in the construction of power plants, petroleum refineries that require a variety of materials to function well.

Our factory produces a variety of pipe fittings.

Flange
Size Range: 1/2” - 120” ( DN 15 - DN 3000)
Rating: 150, 300, 400, 600, 900, 1500, 2500;
Type: Welding Neck, Long Welding neck, Slip on, Blind, Spectacle Blind,Lap joint, Socket weld, Threaded, Orifice, Ring Joint Flange, Spacer and Blank, Anchor Flange, API flange, etc.
Standard:
ANSI B16.5, ANSI B16.47 Series A & Series B, AWWA C207, BS4504,
BS3293, DIN EN1092-1, API590, JIS/KS, ISO 7005-1, JB/T, etc.
Material:
Carbon steel, Low Temperature Carbon Steel, High Yield Carbon Steel,
Plate Material, Low Alloy Steel, Stainless Steel, Duplex
Application:
Can be widely used in the field of Gas, Oil, Pipeline, Water Supply, Electricity and Machinery.
Stainless Steel:
C.S: A36, A105, A266 CL2/CL4, ST37.2, C22.8, S235JR, S355JR
LTCS: A350 LF2 CL1/CL2/LF3
HYCS: A694 F42/F52/F60/F62/F65/F70
Plate: A515 Gr60/70, A516 Gr 60/70, A285 Gr A B C, A240 304, A240 316
LAS: A182 F5, F9, F11 CL1/CL2/CL3, F12 CL1/CL2, F22 CL1/CL3, F91
SS: A182 F304/L, F304H, F316/L, F317/L, F44
Duplex SS: A182 F51/UNS 31803, F53/UNS 32750

Elbow
Product Specification:
Type: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless；
26” - 96” ( DN 660 - DN 2438.4) for Welded.
Wall Thickness: SCH 5S - XXS
Style: Long Radius (LR) / Short Radius (SR)
Angle: 45 Degree, 90 Degree, 180 Degree or in specified degree.
Standard:
ASME/ANSI B16.9, ASME B16.28, MSS SP43, DIN2605, DIN2617, DIN2516, JISB2311, etc.
Application:
Can be widely used in the field of Chemical,  Construction, Water Supply, Drainage, Oil, Light & Heavy Industries, Freezing, Sanitation, Fire Control, Electric Power, Aerospace, shipbuilding, etc.

Bend
Product Specification:
Type: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;
26” - 80”( DN 660 - DN 2032) for Welded.
Wall Thickness: SCH 10 - XXS
Style: R=3D R=5D R=7D R=10D or specified Radius
Angle:  From 30 to 180 Degree or in specified degree.
Standard:
ASME B31.4, ASME 31.8, ASME B16.49, JIS, DIN, GB, HG, SH, JB, HGJ, etc.
Material:
Carbon steel, Low Temperature Carbon Steel, High Yield Carbon Steel, Alloy Steel, Stainless Steel.
C.S: ASTM/ASME A234 WPB / WPC, ST37.0, ST35.8, ST45.8
LTCS: A420 WPL6, ASTM/ASME A402 WPL3 / WPL6
HYCS: ASTM/ASME A860 WPHY 42 / 46 / 52 / 60 / 65 / 70
AS: ASTM/ASME A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP9 / WP91 / 15Mo3 / 15CrMoV / 35CrMoV
SS: ASTM/ASME A403 WP304 / 304L / 304H / 304LN / 304N  / 316L / 316H 321H / 347H

Cap
Size:
NPS from 1/2'' to 48'', DN from 12 to 1200,WT: 2-80mm, SCH 40/80/XXS
Material:
Carbon Steel --- ASTM A234 WPB ANSI B 16.9, DIN 2606 N-5 ST.37.0;
Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S;
Alloy Steel --- ASTM A234 WP 1/5/9/11/12/22/91
Bend Radius: 2.5D/3D/4D/5D/6D/7D/8D/9D/10D

Reducer
Outside Diameter:
Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types: Concentric Reducers, Eccentric Reducers
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40,
STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Tee
Product Specification:
Type: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;
26” - 72” ( DN 660 - DN 1828.8) for Welded
Wall Thickness: SCH 20 - XXS
Style: Equal / Reducing
Process: Cold-Extruded / Hot-Pressed
Standard:
ASME/ANSI B16.9, GB/T12459, GB/T13401, DIN 2615, SH3408,
SH3409-96, SH3410-96, HG/T21635, DL/T 695, SY/T 0510, etc.

Sockolet
Sockolet have a socket into which a plain end. branch pipe is inserted, then fillet welded together. It is a type of self-reinforced branch fitting.
Dimensions：
Standard: MSS SP-97
Size: 1/4 to 4 Inch / DN6 to DN100
Pressure: 3000 LB and 6000LB
Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel: ASTM A105, A350 LF2,LF3. A694 F52, F60, F65, F70
Stainless Steel: ASTM A182 F304, F316, F317, F321, F310
Duplex Stainless Steel: ASTM A182 F51, F53, F55

Lap Joint Stub Ends
Size range: 1/2” to 36”
Grade: ASME/ASTM SA A234
Type: Long and short lap joint stub ends
Wall Thickness: Schedule 5s, 10s, 20s, Sch10, Sch20, Sch30, STD, Sch40 and etc.
standard of stub end:
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, ASTM A234, ASME SA234 WPB ,
WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
