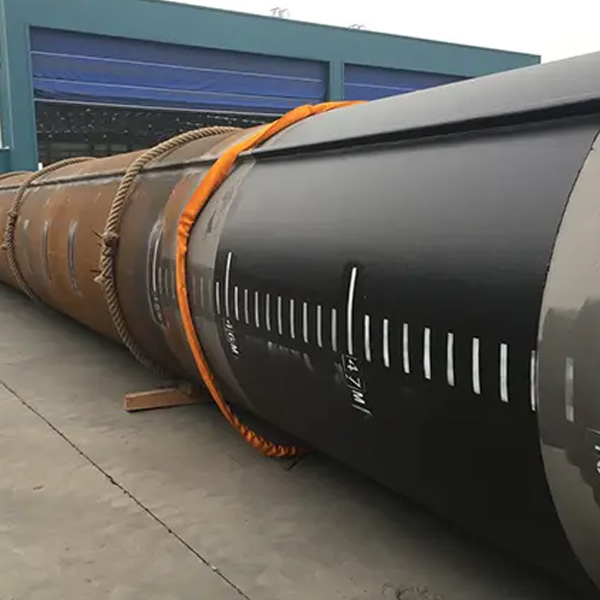

Steel pipe piles are highly recommended as the preferred piling material for seaport constructions and yard buildings. It is typically made of carbon steel and can be manufactured in seamless or welded forms, such as SSAW or LSAW.
Helical piles or Screw Piles: These piles have a screw or helix welded to the end of the pile shaft. The pile is then “screwed” into the ground for deep foundation projects. This leads to an ease of installation, shorter project times and less soil displacement than other pile types.
Usage: Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling
Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS, IS,
Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
Size:Out Diameter: 219.1mm –3048mm
Wall Thickness: 5.0mm-30mm
Length: Up to 70m
Steel Grade:
API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H

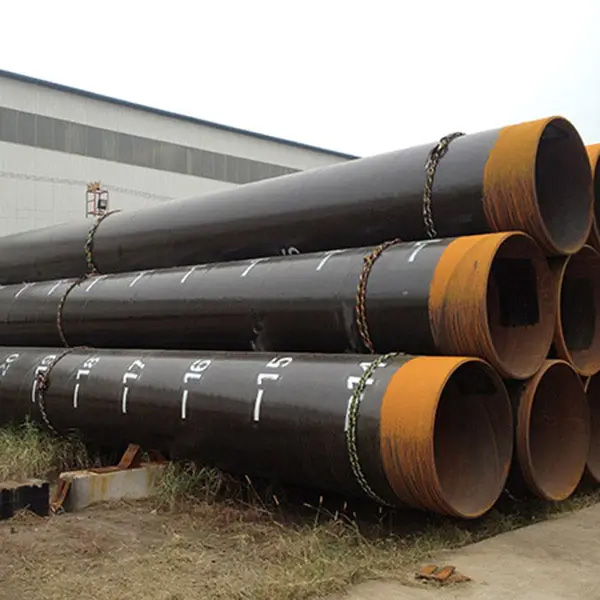

Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Steel pile includes:
Pipe Pile – Piling Pipe – Pipe Piling
Sheet Pile
H-beam pile
Screw pile
Disc pile
Manufacturing Processes
Longitudinal Submerged Arc Welded LSAW Pipe
LSAW Pipes are formed by rolling a discrete length into a cylinder and welding it both longitudinally and laterally. This method can produce the largest and thickest pipe sections, which can be used as load bearing piles, combination wall piles or other applications.

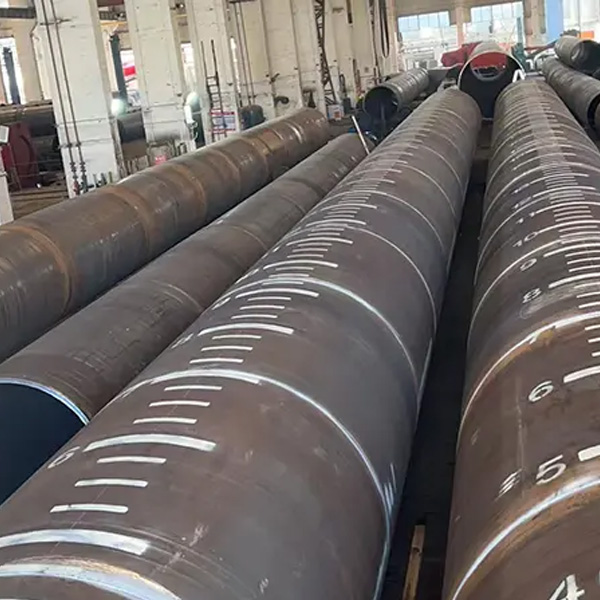

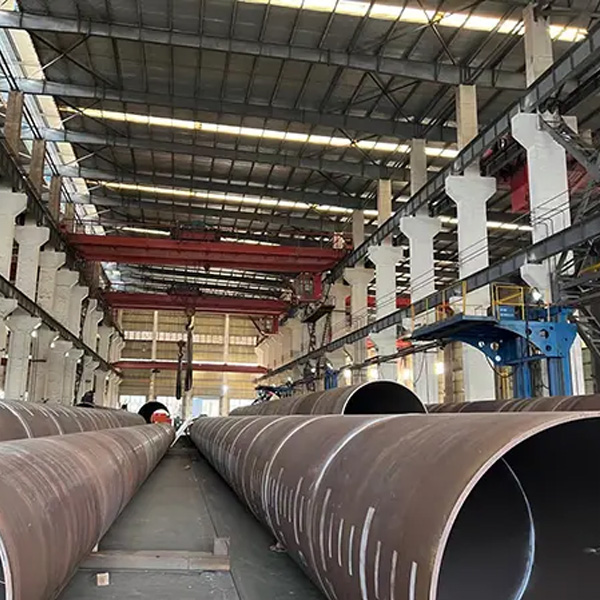

Spiral Submerged Arc Welded SSAW PipeSSAW Pipe are formed in a spiral and welded both inside and outside continuously. They are typically used as King Piles for Combination Walls and also Dredging Pipe.

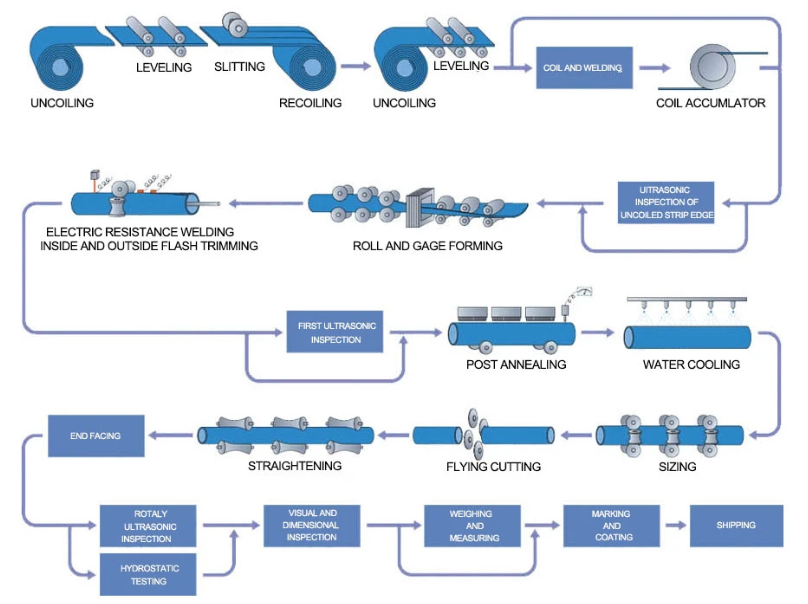

Electric Resistance Welded ERW Pipe
ERW Pipes are manufactured by rolling the raw plate into a cylinder and then passing a current through to fuse the two ends. They are typically used for fencing, scaffolding and line pipes for fluis and gases.
