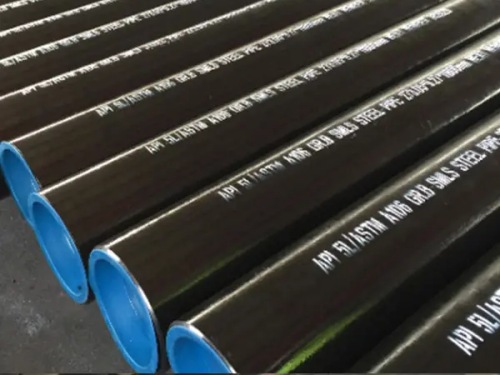

What Is ASTM A106 Seamless Pipe?
ASTM A106 seamless pipe is a carbon steel pipe designed for high-temperature and high-pressure service applications. Manufactured without a weld seam, it offers excellent pressure resistance, high structural strength, and reliable performance under elevated temperatures. ASTM A106 pipes are widely used in power plants, oil and gas projects, petrochemical facilities, boiler systems, and industrial process pipelines.
ASTM A106 Pipe Size Range
ASTM A106 seamless pipes are produced in a wide range of dimensions to meet different industrial requirements.
Standard Size Range
|
Specification
|
Details
|
|
Nominal Pipe Size
|
NPS 1/8" to NPS 48"
|
|
Wall Thickness
|
SCH10 to SCH160
|
|
Pipe Types
|
STD, XS, XXS
|
|
OD Tolerance
|
±1%
|
|
Wall Thickness Tolerance
|
Max -12.5% below nominal thickness
|
The wall thickness follows ANSI B36.10 standards.
ASTM A106 Pipe Grades
ASTM A106 includes three main grades:
Grade A
Grade B
Grade C
Among them, ASTM A106 Grade B is the most commonly used due to its balanced strength, weldability, and cost performance.
Chemical Composition of ASTM A106 Pipes
The chemical composition directly affects strength, weldability, and high-temperature performance.
|
Element
|
Grade A
|
Grade B
|
Grade C
|
|
Carbon (C) Max
|
0.25%
|
0.30%
|
0.35%
|
|
Manganese (Mn)
|
0.27–0.93%
|
0.29–1.06%
|
0.29–1.06%
|
|
Phosphorus (P) Max
|
0.035%
|
0.035%
|
0.035%
|
|
Sulfur (S) Max
|
0.035%
|
0.035%
|
0.035%
|
|
Silicon (Si) Min
|
0.10%
|
0.10%
|
0.10%
|
Grade Selection Guide
ASTM A106 Grade A
Lower carbon content
Better ductility
Easier bending and forming
ASTM A106 Grade B
Balanced mechanical properties
Excellent weldability
Most widely used grade
ASTM A106 Grade C
Highest strength
Suitable for high-pressure applications
Lower weldability compared with Grade B
Mechanical Properties of ASTM A106 Pipe
Mechanical performance increases with carbon content.
|
Property
|
Grade A
|
Grade B
|
Grade C
|
|
Yield Strength (Min)
|
30,000 psi
|
35,000 psi
|
40,000 psi
|
|
Tensile Strength (Min)
|
48,000 psi
|
60,000 psi
|
70,000 psi
|
Main Advantages of ASTM A106 Seamless Pipe
Excellent high-temperature resistance
High pressure-bearing capability
No weld seam defects
Strong mechanical performance
Good reliability in critical systems
ASTM A106 vs ASTM A53
ASTM A106 and ASTM A53 are often compared, but they are designed for different applications.
|
Standard
|
Main Application
|
|
ASTM A106
|
High-temperature and high-pressure service
|
|
ASTM A53
|
Low to medium pressure general piping
|
ASTM A106 is preferred for demanding industrial environments such as refineries and power plants.
ASTM A106 vs ASTM A105
ASTM A106 applies to seamless steel pipes, while ASTM A105 applies to forged piping components.
|
Standard
|
Product Type
|
|
ASTM A106
|
Seamless carbon steel pipe
|
|
ASTM A105
|
Forged flanges and fittings
|
These materials are often used together in industrial piping systems.
Common Applications of ASTM A106 Pipe
Steam pipelines
Refinery piping systems
High-temperature process lines
Boiler and heat exchanger systems
Oil and gas transportation
How to Choose the Right ASTM A106 Grade?
Selection depends on:
Operating temperature
System pressure
Welding requirements
Mechanical strength requirements
Budget considerations
General Recommendation
Grade A → easier forming and bending
Grade B → general industrial use
Grade C → high-strength applications
Conclusion
ASTM A106 seamless pipe is one of the most important standards for high-temperature and high-pressure piping systems.
With multiple grades, schedules, and dimensional options, ASTM A106 pipes provide reliable performance for demanding industrial applications such as power generation, petrochemical processing, and oil & gas transportation.
Selecting the correct ASTM A106 grade and specification helps ensure pipeline safety, operational stability, and long-term project reliability.
FAQ
Q1: What is ASTM A106 pipe used for?
High-temperature and high-pressure piping systems.
Q2: Which ASTM A106 grade is most commonly used?
ASTM A106 Grade B.
Q3: What sizes are available for ASTM A106 pipe?
From NPS 1/8" to NPS 48".
Q4: Is ASTM A106 seamless or welded?
ASTM A106 is a seamless carbon steel pipe standard.
Q5: What is the difference between ASTM A106 and ASTM A53?
ASTM A106 is designed for high-temperature service, while ASTM A53 is used for general piping applications.
